产品展示 |
| |
|

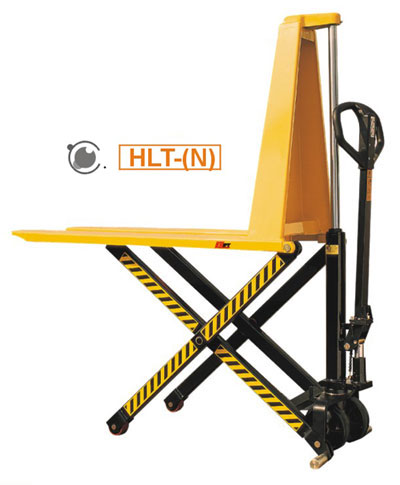

| 名称:剪式搬运车--HLT(N)10/15 |
|
 名称:剪式搬运车--HLT(N)10/15 |
|
|
| 产品详细说明 |
|
|
1KG=2.2LB 1INCH=25.4MM
|
项目/型号 |
|
HLT10 |
HLT15 |
HLT(N)10 |
| 额定负载 Q |
kg |
1000 |
1500 |
1000 |
| 货叉最低高度 h |
mm |
85 |
85 |
85 |
| 货叉最高高度 h1 |
mm |
800 |
800 |
800 |
| 货叉尺寸 exs |
mm |
162x50 |
162x50 |
162x50 |
| 货叉长度l |
mm |
1140 |
1100 |
1150 |
| 货叉全宽(可调节式/固定式) b5 |
mm |
520/680 |
520/680 |
540/680 |
| 净重 |
kg |
105/112 |
118/125 |
128/133 |
| 货叉轮子 |
mm |
Φ75x50 |
Φ75x50 |
Φ75x50 |
| 大轮 |
mm |
Φ150x50 |
Φ150x50 |
Φ180x50 |
| 木箱尺寸 |
mm |
193x58x72 |
193x58x72 |
2040x600x1110 |
| 件/20’集装箱 |
mm |
193x74x72 |
193x74x72 |
2040x740x1110 |
Note: HLT10&HLT15 is two-cylinder-system HLT(N)10 is one-cylinder-system | |
|
|
| |
|
|
| | |
|
 | |
